Smart-Box

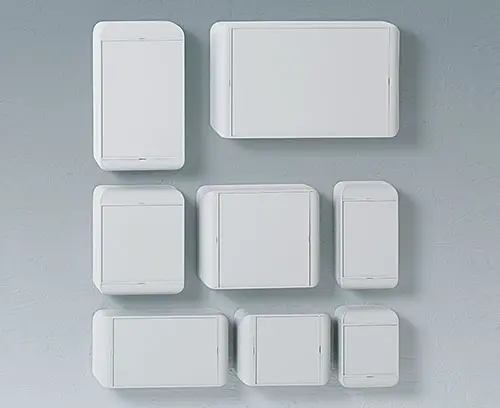

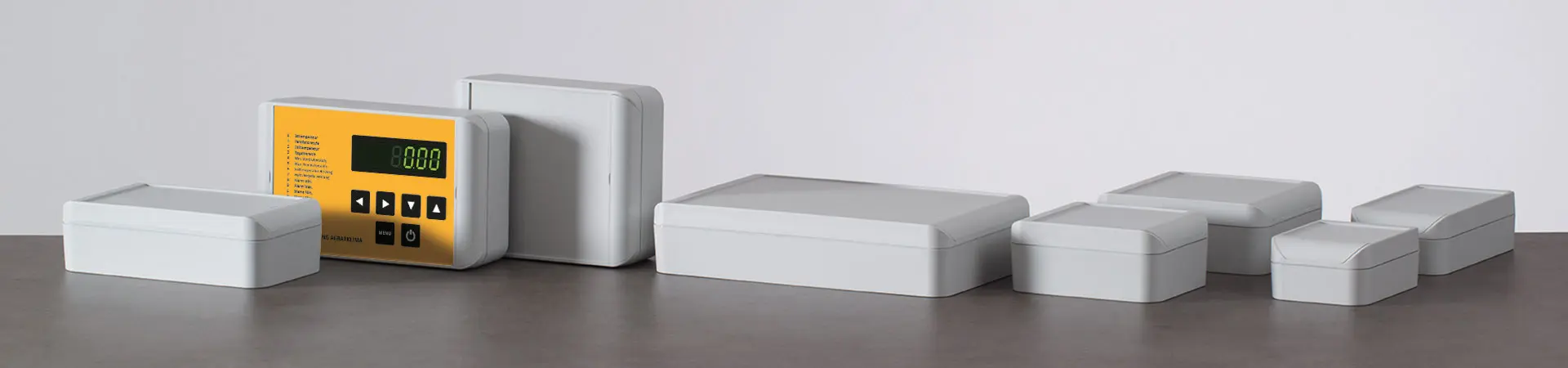

Advanced IP 66 plastic enclosures
The rounded ergonomic design of the SMART-BOX series is designed to enhance the visual impact and tactile quality of your industrial electronics.
- convincing design; hinged flush-fitting trims hide all the case fixings
- high-quality material ASA+PC (UL 94 V-0) for use in tough conditions; also flame-retardant and self-extinguishing
- RF permeable enclosure material

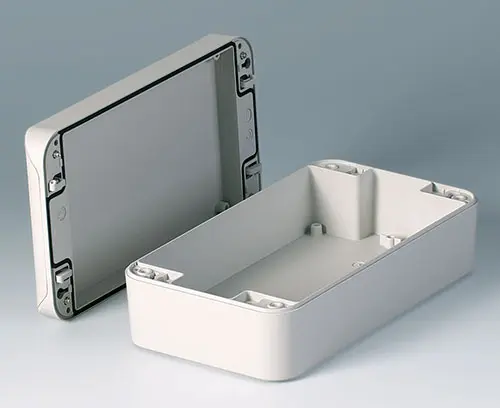

- high protection class IP 66 (width 90/110/130/150), IP 65 (width 170) ; with pre-fitted sealing gaskets in the top
- high-quality A2 stainless steel alloy screws with high corrosion resistance – even against aggressive substances

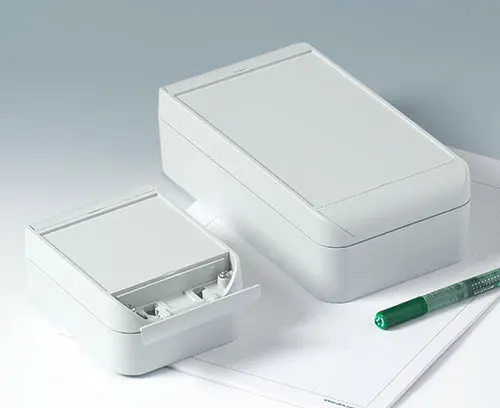

- universal use for wall mount and desktop applications

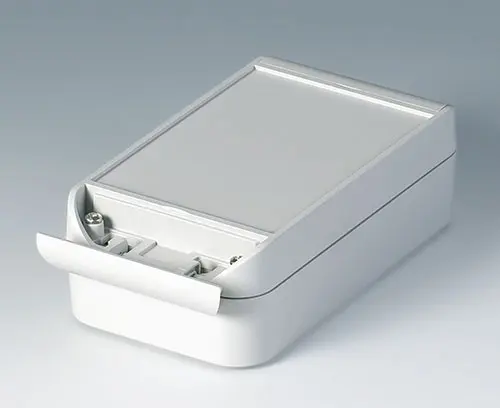

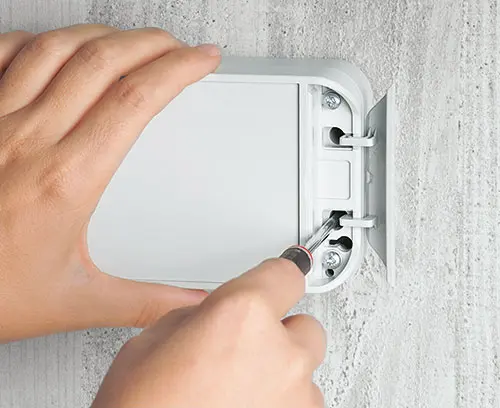

- screw shafts for wall mounting hidden under the hinged trims

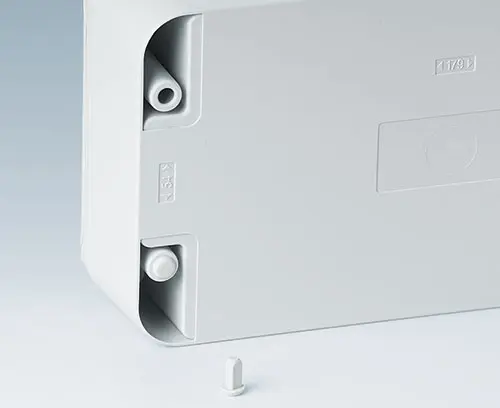

- case feet (accessory), simply snap-in ensure non-slip desktop positioning

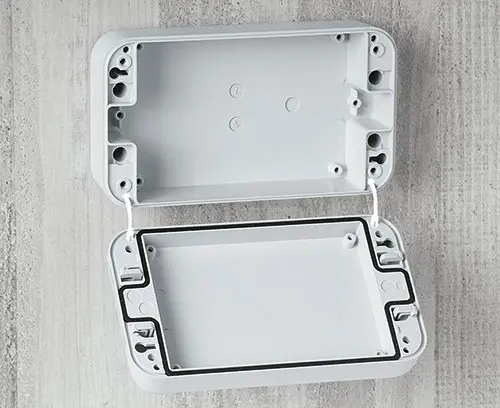

- two plastic lid retaining straps included

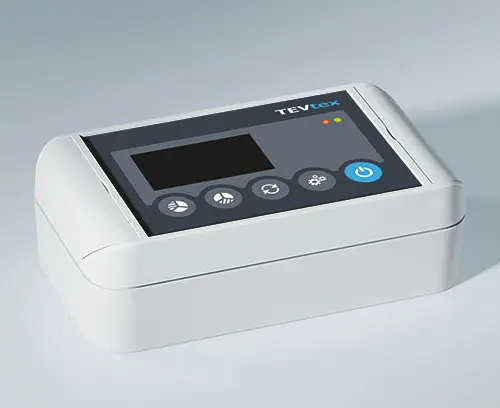

- recessed operating area for protecting a membrane keypad; additional surface for labels on the underside

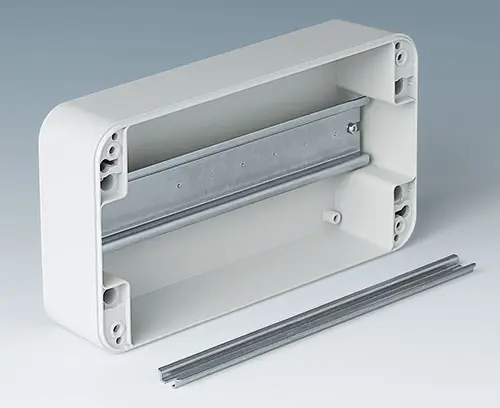

- internal fastening pillars for PCBs and DIN rails
Application Fields

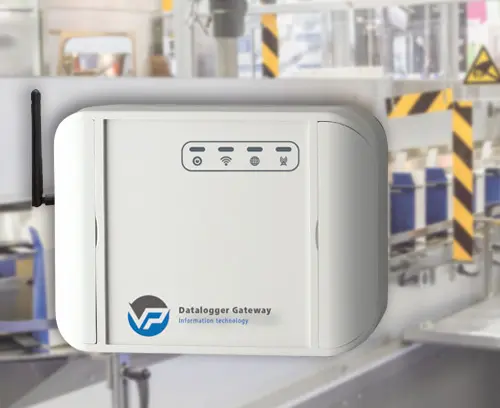

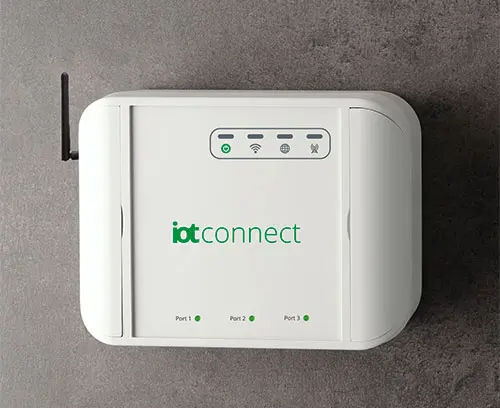

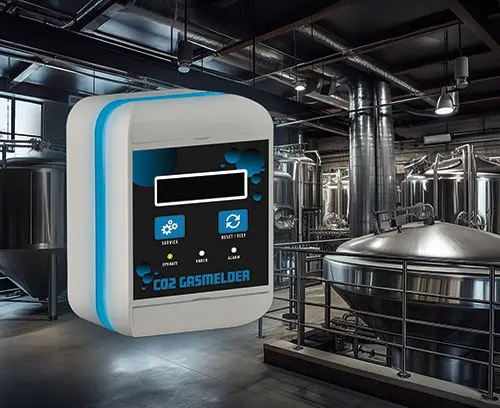

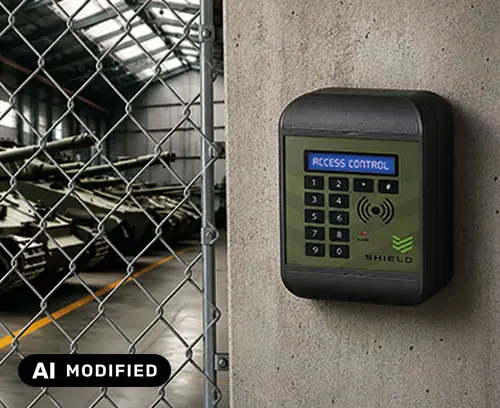

Ideal for design orientated electrical and electronic applications, e.g. heating, air conditioning and ventilation engineering, control and system engineering, safety technology, IoT/IIoT, smart factory, industry 4.0, gateways, etc.
C6009121
SMART-BOX WIDTH 90
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6009121
SMART-BOX WIDTH 90product added to your list
light grey RAL 7035
120x90x50mm
C6009161
SMART-BOX WIDTH 90
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6009161
SMART-BOX WIDTH 90product added to your list
light grey RAL 7035
160x90x50mm
C6011141
SMART-BOX WIDTH 110
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6011141
SMART-BOX WIDTH 110product added to your list
light grey RAL 7035
140x110x60mm
C6011201
SMART-BOX WIDTH 110
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6011201
SMART-BOX WIDTH 110product added to your list
light grey RAL 7035
200x110x60mm
C6013161
SMART-BOX WIDTH 130
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6013161
SMART-BOX WIDTH 130product added to your list
light grey RAL 7035
160x130x60mm
C6013221
SMART-BOX WIDTH 130
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6013221
SMART-BOX WIDTH 130product added to your list
light grey RAL 7035
220x130x60mm
C6015181
SMART-BOX WIDTH 150
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims (hinged), assembly kit incl. cover retention
C6015181
SMART-BOX WIDTH 150product added to your list
light grey RAL 7035
180x150x60mm
C6017281
SMART-BOX WIDTH 170
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6017281
SMART-BOX WIDTH 170product added to your list
light grey RAL 7035
280x170x60mm
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)product added to your list
A0308031
Self-tapping screws 3 x 8 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308031
Self-tapping screws 3 x 8 mm (PZ1)product added to your list
A0308132
Self-tapping screw 3 x 8 mm (T10)
Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)product added to your list
A9325018
Pole/mast mounting bracket
For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.
Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.
Supply 1 pole/mast mounting bracket
A9325018
Pole/mast mounting bracketproduct added to your list
anthracite grey RAL 7016
100x100x20mm
C2299018
Case feet
When using the case for desktop applications.
Supply 4 case feet
C2299018
Case feetproduct added to your list
C2306917
Pressure equalisation element M6x0.75
Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Supply 1 pressure equalisation element, 1 seal washer, 1 nut
C2306917
Pressure equalisation element M6x0.75product added to your list
light grey RAL 7035
C2310917
Pressure equalisation element M10x1
Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Supply 1 pressure equalisation element, 1 seal washer, 1 nut
C2310917
Pressure equalisation element M10x1product added to your list
light grey RAL 7035
C2316147
Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 5 - 10 mm. Operating temperatures from -40°C to +100°C. Borehole ø 16.5 mm.
Supply 1 cable grommet
C2316147
Cable grommetproduct added to your list
light grey RAL 7035
C2320137
Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.
Supply 1 cable grommet
C2320137
Cable grommetproduct added to your list
light grey RAL 7035
C2320147
Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 6 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.
Supply 1 cable grommet
C2320147
Cable grommetproduct added to your list
light grey RAL 7035
C6100006

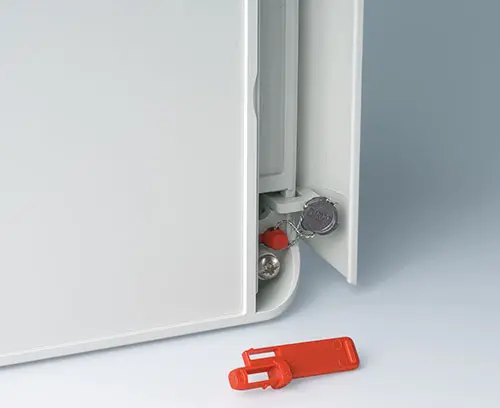

Security plug
For use with lead tags.
Supply 1 plug
C6100006
Security plugproduct added to your list
red
C6100016
Set of security
For use with lead tags.
Supply 2 plugs
C6100016
Set of securityproduct added to your list
red

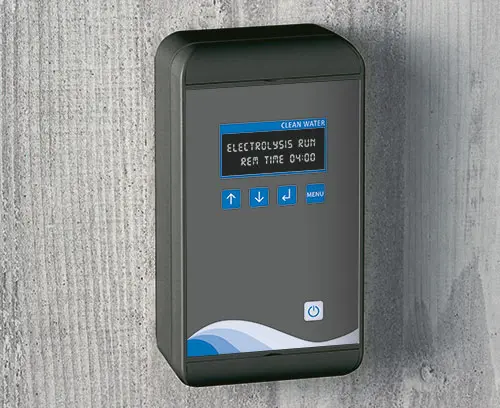

Customising options for Smart-Box
What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
