Accessories for enclosures
A9166005

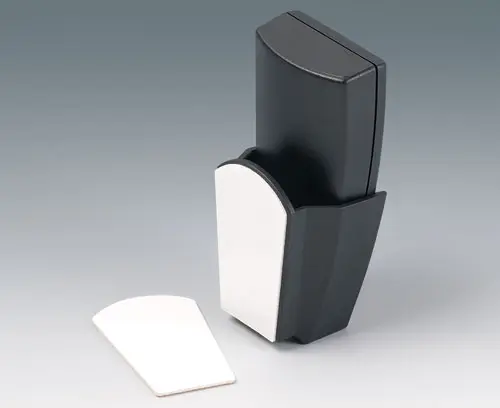

Adhesive foil M
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply1 piece
Generate Your PDF Datasheet for A9166005
Please select the product details you would like to include in the PDF.
Add to my basket
A9066107
SMART-CASE M, Vers. I
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).
Version Case-top without recessed operating area
Supply Base and top part, 1 screw
A9066107
SMART-CASE M, Vers. Iproduct added to your list
off-white RAL 9002
96x47x24mm
A9066109
SMART-CASE M, Vers. I
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).
Version Case-top without recessed operating area
Supply Base and top part, 1 screw
A9066109
SMART-CASE M, Vers. Iproduct added to your list
black RAL 9005
96x47x24mm
A9066117
SMART-CASE M, Vers. II
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066117
SMART-CASE M, Vers. IIproduct added to your list
off-white RAL 9002
96x47x24mm
A9066119
SMART-CASE M, Vers. II
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066119
SMART-CASE M, Vers. IIproduct added to your list
black RAL 9005
96x47x24mm
A9066127
SMART-CASE M, Vers. III
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9066127
SMART-CASE M, Vers. IIIproduct added to your list
off-white RAL 9002
96x47x24mm
A9066129
SMART-CASE M, Vers. III
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9066129
SMART-CASE M, Vers. IIIproduct added to your list
black RAL 9005
96x47x24mm
A9066137
SMART-CASE M, Vers. IV
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9066137
SMART-CASE M, Vers. IVproduct added to your list
off-white RAL 9002
96x47x24mm
A9066139
SMART-CASE M, Vers. IV
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9066139
SMART-CASE M, Vers. IVproduct added to your list
black RAL 9005
96x47x24mm
A9066147
SMART-CASE M, Vers. V
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9066147
SMART-CASE M, Vers. Vproduct added to your list
off-white RAL 9002
96x47x24mm
A9066149
SMART-CASE M, Vers. V
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9066149
SMART-CASE M, Vers. Vproduct added to your list
black RAL 9005
96x47x24mm
A9066209
SMART CASE M, Vers. I
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Integrated supports for two 1,5 V micro cells (AAA).
Version Case-top without recessed operating area
Supply Base and top part, 1 screw
A9066209
SMART CASE M, Vers. Iproduct added to your list
black RAL 9005
96x47x24mm
A9066219
SMART-CASE M, Vers. II
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Integrated supports for two 1,5 V micro cells (AAA).
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066219
SMART-CASE M, Vers. IIproduct added to your list
black RAL 9005
96x47x24mm
A9066317
SMART-CASE M, Vers. VI
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part.
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066317
SMART-CASE M, Vers. VIproduct added to your list
off-white RAL 9002
96x47x24mm
A9066319
SMART-CASE M, Vers. VI
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part.
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066319
SMART-CASE M, Vers. VIproduct added to your list
black RAL 9005
96x47x24mm
A9066329
SMART-CASE M, Vers. III
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9066329
SMART-CASE M, Vers. IIIproduct added to your list
black RAL 9005
96x47x24mm
A9066339
SMART-CASE M, Vers. IV
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9066339
SMART-CASE M, Vers. IVproduct added to your list
black RAL 9005
96x47x24mm
A9066349
SMART-CASE M, Vers. V
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9066349
SMART-CASE M, Vers. Vproduct added to your list
black RAL 9005
96x47x24mm
A9066419
SMART-CASE M, Vers. VI
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066419
SMART-CASE M, Vers. VIproduct added to your list
black RAL 9005
96x47x24mm
A9166307
Holder M
Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE M with clip.
Supply 1 holder
A9166307
Holder Mproduct added to your list
off-white RAL 9002
A9166309
Holder M
Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE M with clip.
Supply 1 holder
A9166309
Holder Mproduct added to your list
black RAL 9005
Standards
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
1 g
Customs tariff number
(OKW product)
(OKW product)
39199080
Country of manufacture
Germany
