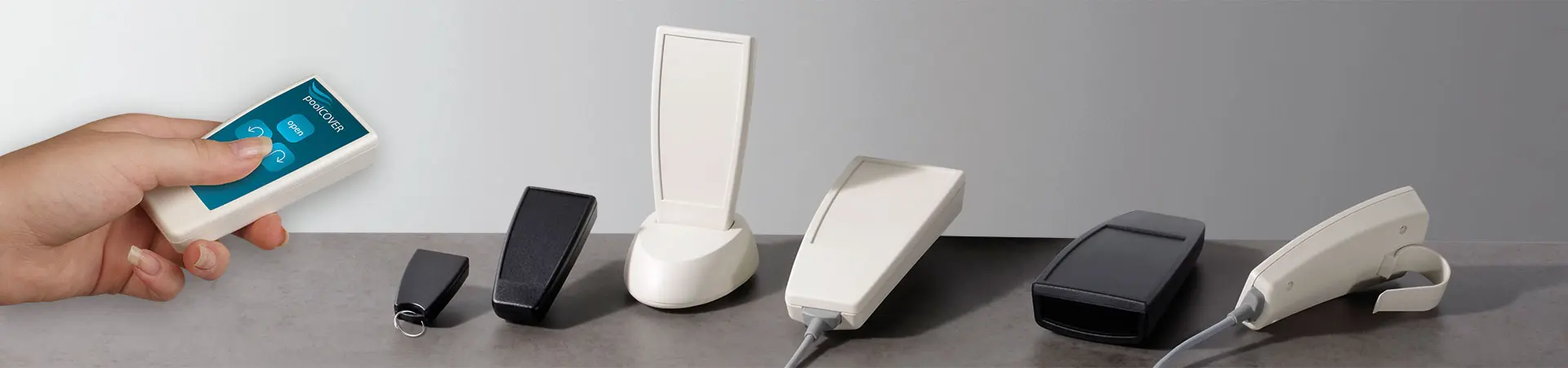

Smart-Case

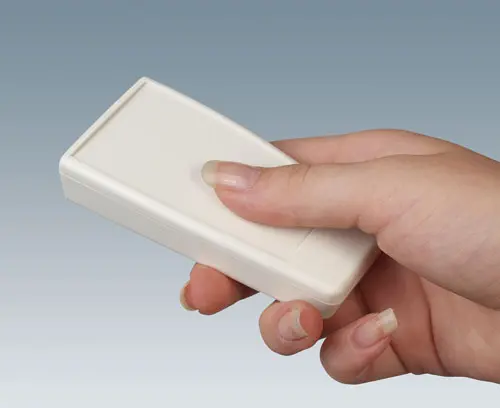

Contoured handheld enclosures – great to hold
The idea of giving greater expression to ergonomic requirements was the starting point in the development of our SMART-CASE plastic enclosures.
- ergonomic design for maximum user comfort

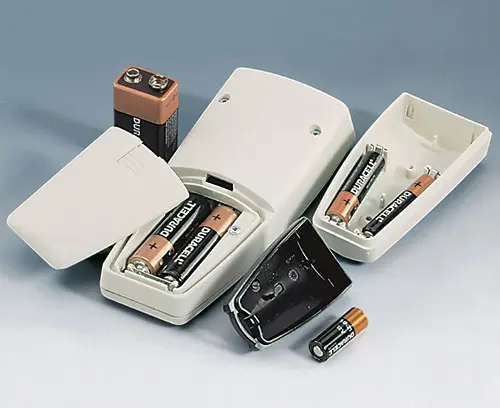

- ideal for remote control devices connected via cable or powered by batteries: AAA, AA, 9 V or 12 V round cell
- versions with pre-fitted cable glands (sizes M, L and XL)

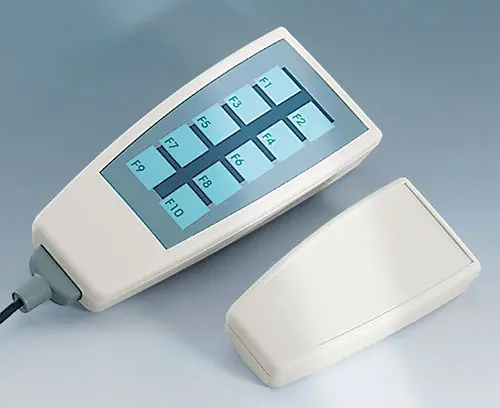

- recessed operating area for protecting the membrane keypad or decorative foil/label

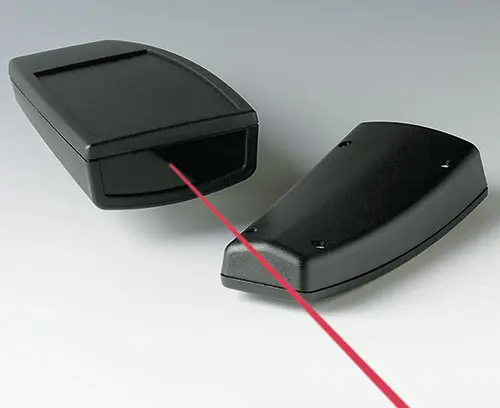

- ABS (UL 94 HB); SMART-CASES also available in infra-red light-permeable PMMA plexiglas
- protection class up to IP 65: sizes L and XL with optional sealing kit and without battery compartment
- suitable clip and support for secure deposit as accessories

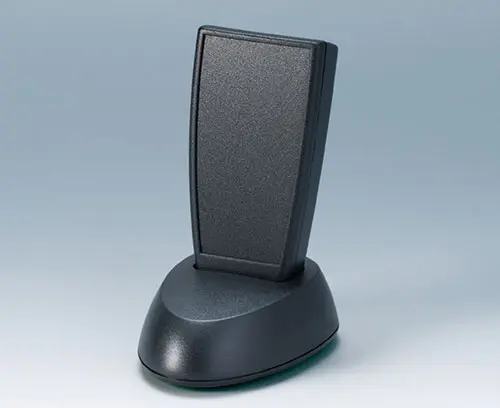

- station M, L & XL for desk-top applications

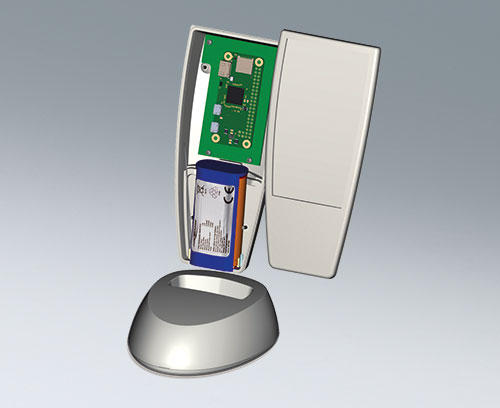

- internal fastening pillars and fixing supports for PCBs and components

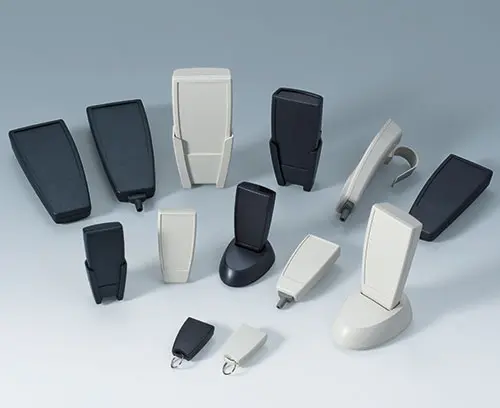

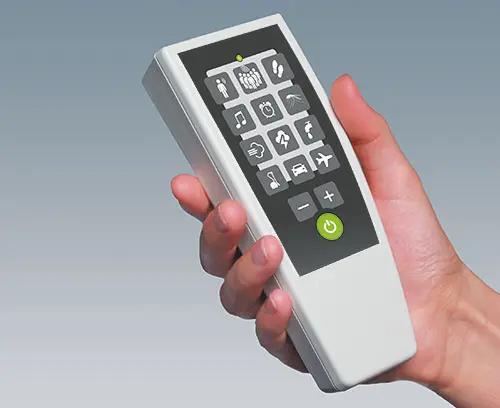

- 4 enclosure sizes
Application Fields

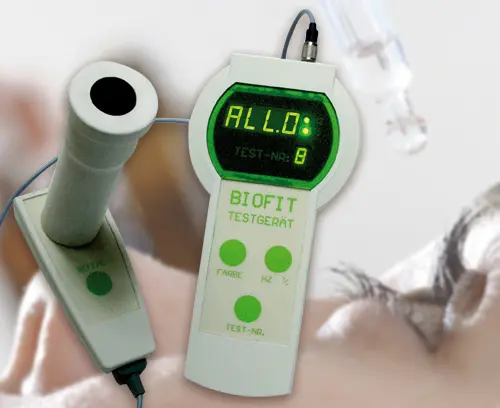

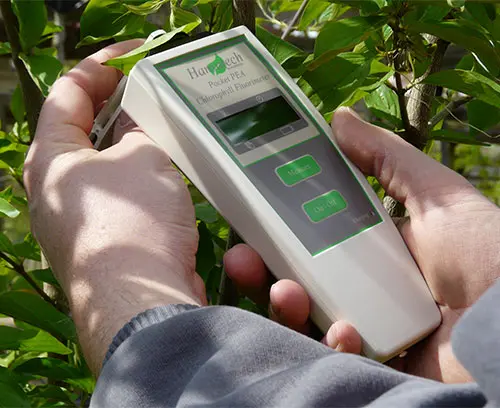

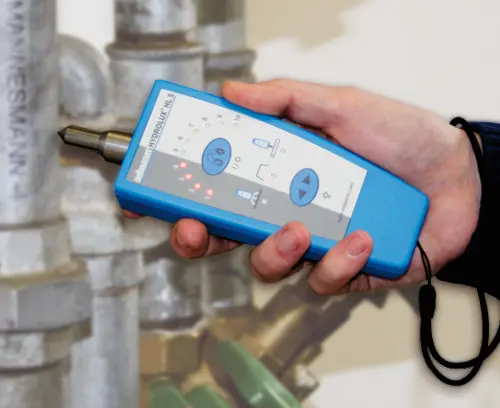

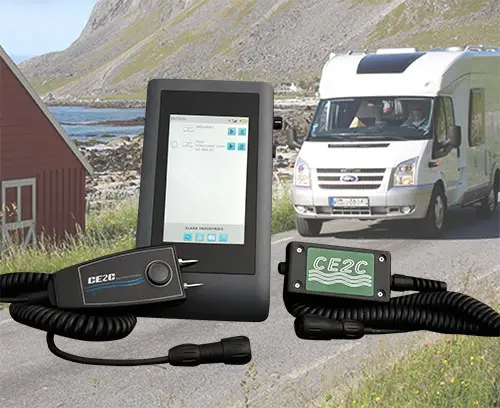

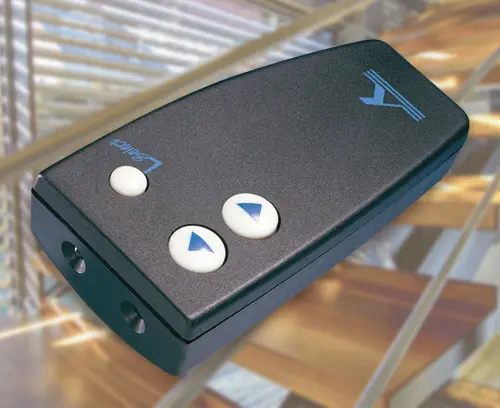

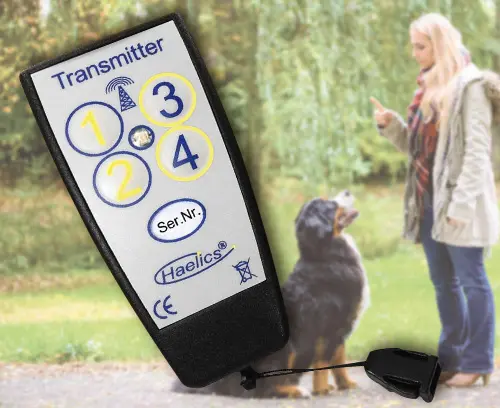

Many different types of remote control systems. Mobile USB solutions. Specially made for the medical and social fields as well as in the household and in industry.
Select which version/size you want below or browse full product list
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)product added to your list
A9100001
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.
Supply 1 ring eyelet
A9100001
Ring eyeletproduct added to your list
volcano
A9100002
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.
Supply 1 ring eyelet
A9100002
Ring eyeletproduct added to your list
volcano
A9160003
Plug-in contact, 1 x 9 V (PP3)
Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).
Application: for a 9 V flat battery (PP3).
Supply 1 plug-in contact
A9160003
Plug-in contact, 1 x 9 V (PP3)product added to your list
A9164001

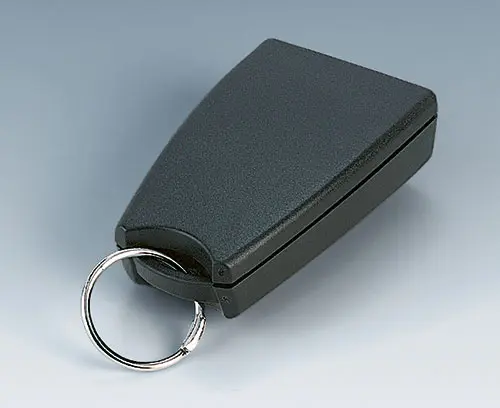

Key ring
Version: diameter = 20.5 mm.
Supply 1 key ring
A9164001
Key ringproduct added to your list
nickel-plated
20.5mm
A9166001
Set of battery clips, 2 x AAA
For contacting the batteries.
Supply 4 single contacts
A9166001
Set of battery clips, 2 x AAAproduct added to your list
tin-plated
A9166002
Battery contact, 2 x AAA
In combination with battery contacts A9166001 it's possible to have a bridge connection and therefore a serial connection.
Supply 1 battery contact
A9166002
Battery contact, 2 x AAAproduct added to your list
tin-plated
A9166003
Battery holder, 2 x AAA
The battery holder allows practically movement-free securing of the 2 x 1.5 V micro cells (AAA), thus ensuring that the internal power supply is securely located in position.
Supply 1 battery holder, 1 self-tapping screw
A9166003
Battery holder, 2 x AAAproduct added to your list
black RAL 9005
A9166004
Set of pull-relief
For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.
Supply 2 preshaped pull-relief clamps, 2 self-tapping screws
A9166004
Set of pull-reliefproduct added to your list
volcano
A9166005
Adhesive foil M
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
A9166005
Adhesive foil Mproduct added to your list
A9166037
Station M
Attractive and practical station for holding your SMART CASE M with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.
Supply Bottom and top part, rubber feet, assembly kit
A9166037
Station Mproduct added to your list
off-white RAL 9002
A9166039
Station M
Attractive and practical station for holding your SMART CASE M with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.
Supply Bottom and top part, rubber feet, assembly kit
A9166039
Station Mproduct added to your list
black RAL 9005
A9166307

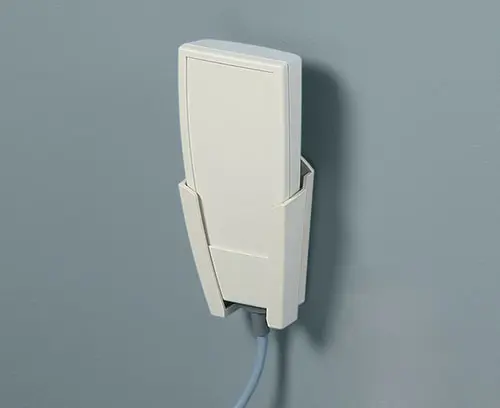

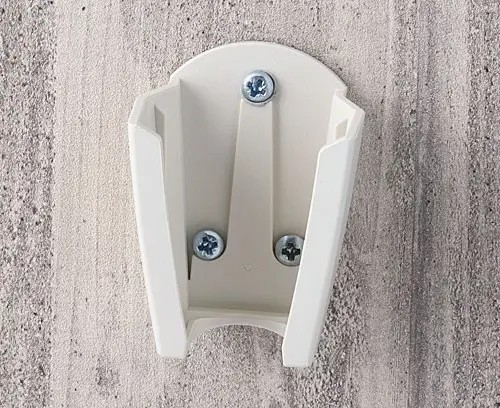

Holder M
Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE M with clip.
Supply 1 holder
A9166307
Holder Mproduct added to your list
off-white RAL 9002
A9166309
Holder M
Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE M with clip.
Supply 1 holder
A9166309
Holder Mproduct added to your list
black RAL 9005
A9167002

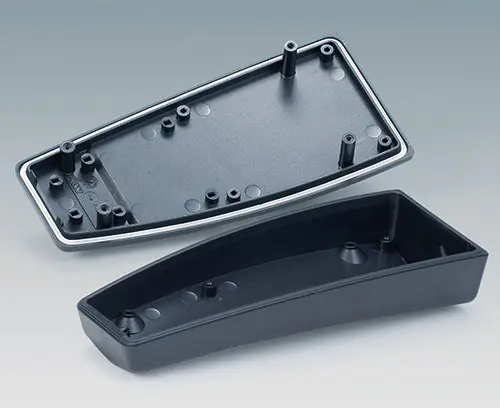

Sealing L
Application: for a higher protection class. For versions II - V.
Supply 1 Sealing kit
A9167002
Sealing Lproduct added to your list
A9167005
Adhesive foil L
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
A9167005
Adhesive foil Lproduct added to your list
A9167017
Belt/pocket clip
Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 Clip, assembly kit
A9167017
Belt/pocket clipproduct added to your list
off-white RAL 9002
A9167019
Belt/pocket clip
Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 Clip, assembly kit
A9167019
Belt/pocket clipproduct added to your list
black RAL 9005
A9167027

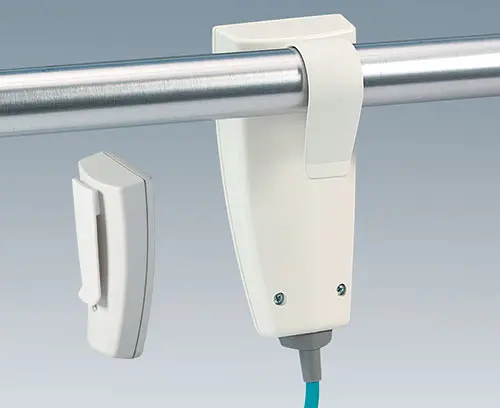

Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167027
Holding clampproduct added to your list
off-white RAL 9002
A9167029
Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167029
Holding clampproduct added to your list
black RAL 9005
A9167037
Station L
Attractive and practical station for holding your SMART CASE L with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided, for SMART-CASE L without battery compartment only). Pillars for PCB mounting, and strain relief to the rear.
Supply Bottom and top part, rubber feet, assembly kit
A9167037
Station Lproduct added to your list
off-white RAL 9002
A9167039
Station L
Attractive and practical station for holding your SMART CASE L with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided, for SMART-CASE L without battery compartment only). Pillars for PCB mounting, and strain relief to the rear.
Supply Bottom and top part, rubber feet, assembly kit
A9167039
Station Lproduct added to your list
black RAL 9005
A9167307
Holder L
Special holder for SMART-CASE L for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE L with clip.
Supply 1 holder
A9167307
Holder Lproduct added to your list
off-white RAL 9002
A9167309
Holder L
Special holder for SMART-CASE L for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE L with clip.
Supply 1 holder
A9167309
Holder Lproduct added to your list
black RAL 9005
A9168002
Sealing XL
Application: For a higher protection class. For the versions II - V.
Supply 1 sealing
A9168002
Sealing XLproduct added to your list
A9168005
Adhesive foil XL
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
A9168005
Adhesive foil XLproduct added to your list
A9168037
Station XL
Attractive and practical station for holding your SMART CASE XL with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.
Supply Bottom and top part, rubber feet, assembly kit
A9168037
Station XLproduct added to your list
off-white RAL 9002
A9168039
Station XL
Attractive and practical station for holding your SMART CASE XL with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.
Supply Bottom and top part, rubber feet, assembly kit
A9168039
Station XLproduct added to your list
black RAL 9005
A9168307
Holder XL
Special holder for SMART-CASE XL for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm.
Supply 1 holder
A9168307
Holder XLproduct added to your list
off-white RAL 9002
A9168309
Holder XL
Special holder for SMART-CASE XL for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm.
Supply 1 holder
A9168309
Holder XLproduct added to your list
black RAL 9005
A9190002
Set of battery clips, 2xN/2xAA/2xAAA
For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).
Note application ART-CASE: only for base suitable (2 x AA).
Supply 1 double contact, 2 single contacts
A9190002
Set of battery clips, 2xN/2xAA/2xAAAproduct added to your list
tin-plated
A9190003
Set of battery clips, 2xN/2xAA/2xAAA
For contacting the batteries.
Supply 1 double contact, 2 single contacts
A9190003
Set of battery clips, 2xN/2xAA/2xAAAproduct added to your list
nickel-plated
A9193030

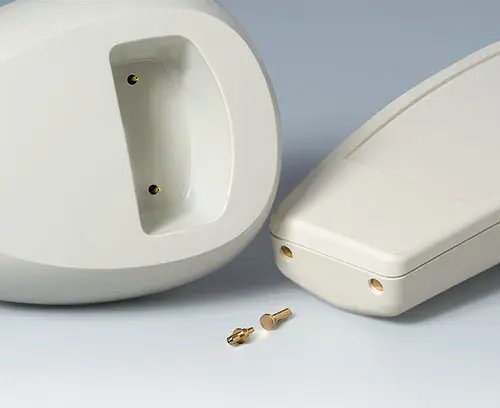

Contact pin
Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.
Supply 1 contact pin
A9193030
Contact pinproduct added to your list
A9193032
Spring contact
Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 3 A. 1.5 mm stroke, 0,3 N. Extremely low contact resistance.
Supply 1 spring contact
A9193032
Spring contactproduct added to your list
B9100063
Carrying strap, textile lanyard
Textile lanyard with loop attachment.
ATTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!
Supply 1 lanyard
B9100063
Carrying strap, textile lanyardproduct added to your list
860mm
Customising options for Smart-Case
What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
