Accessories for enclosures
A9167029

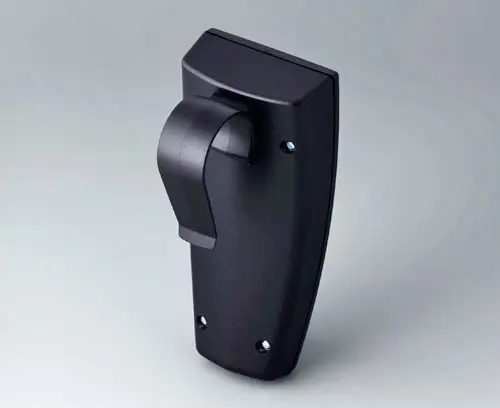

Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply1 holding clamp, assembly kit
2D PDF Drawing
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A9167029
Please select the product details you would like to include in the PDF.
Add to my basket
A9066109

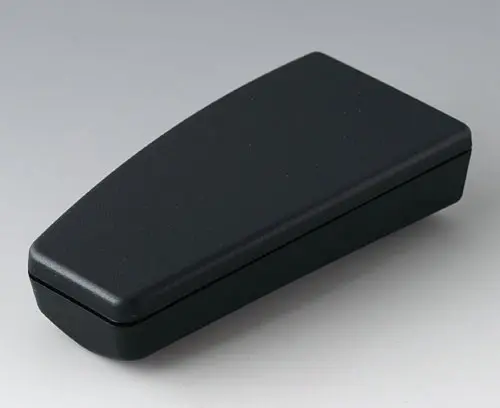

SMART-CASE M, Vers. I
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).
Version Case-top without recessed operating area
Supply Base and top part, 1 screw
A9066109
SMART-CASE M, Vers. Iproduct added to your list
black RAL 9005
96x47x24mm
A9066119
SMART-CASE M, Vers. II
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066119
SMART-CASE M, Vers. IIproduct added to your list
black RAL 9005
96x47x24mm

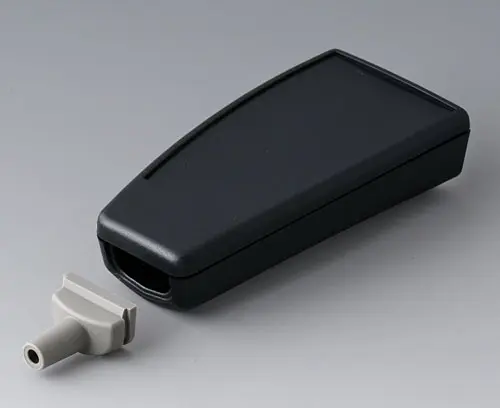

A9066129
SMART-CASE M, Vers. III
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9066129
SMART-CASE M, Vers. IIIproduct added to your list
black RAL 9005
96x47x24mm

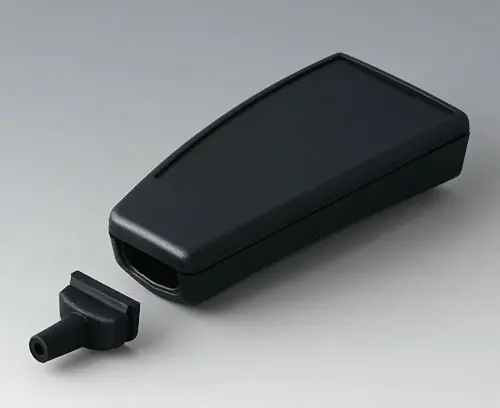

A9066139
SMART-CASE M, Vers. IV
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9066139
SMART-CASE M, Vers. IVproduct added to your list
black RAL 9005
96x47x24mm
A9066149

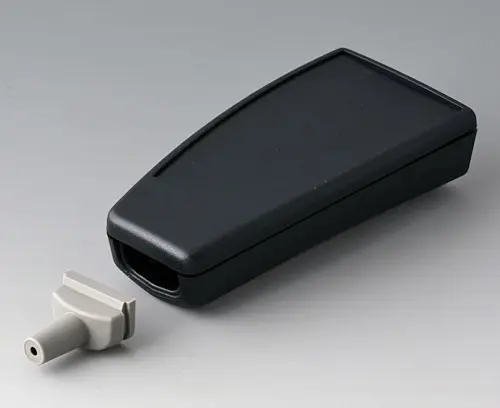

SMART-CASE M, Vers. V
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9066149
SMART-CASE M, Vers. Vproduct added to your list
black RAL 9005
96x47x24mm
A9066209

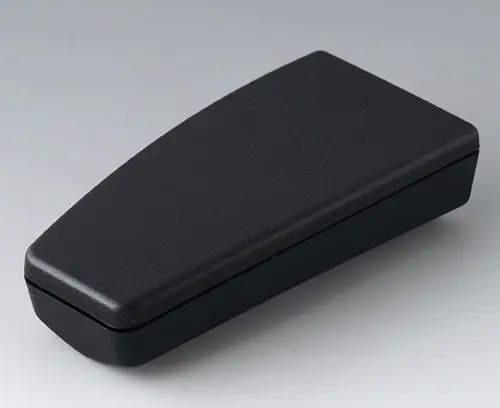

SMART CASE M, Vers. I
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Integrated supports for two 1,5 V micro cells (AAA).
Version Case-top without recessed operating area
Supply Base and top part, 1 screw
A9066209
SMART CASE M, Vers. Iproduct added to your list
black RAL 9005
96x47x24mm
A9066219

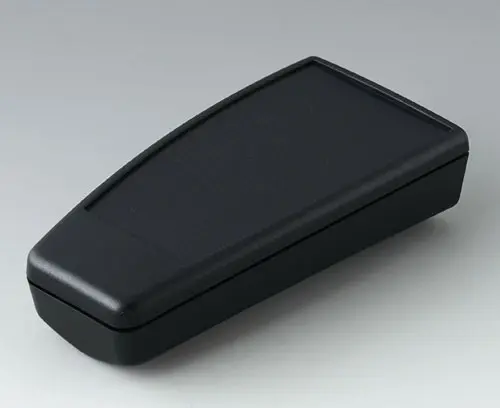

SMART-CASE M, Vers. II
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Integrated supports for two 1,5 V micro cells (AAA).
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066219
SMART-CASE M, Vers. IIproduct added to your list
black RAL 9005
96x47x24mm
A9066319

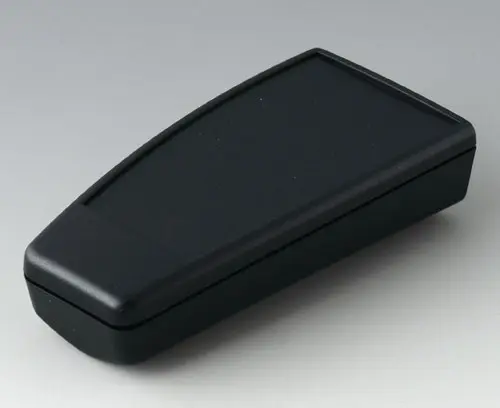

SMART-CASE M, Vers. VI
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part.
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066319
SMART-CASE M, Vers. VIproduct added to your list
black RAL 9005
96x47x24mm
A9066329

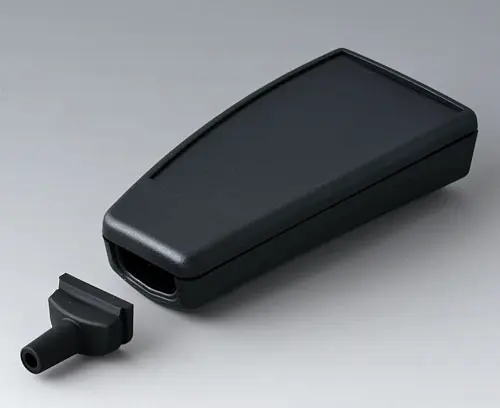

SMART-CASE M, Vers. III
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9066329
SMART-CASE M, Vers. IIIproduct added to your list
black RAL 9005
96x47x24mm
A9066339
SMART-CASE M, Vers. IV
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9066339
SMART-CASE M, Vers. IVproduct added to your list
black RAL 9005
96x47x24mm

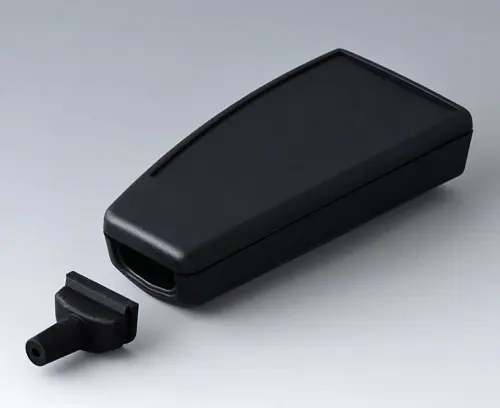

A9066349
SMART-CASE M, Vers. V
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9066349
SMART-CASE M, Vers. Vproduct added to your list
black RAL 9005
96x47x24mm
A9066419
SMART-CASE M, Vers. VI
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066419
SMART-CASE M, Vers. VIproduct added to your list
black RAL 9005
96x47x24mm
A9067109
SMART-CASE L, Vers. I
Large, ergonomic handheld enclosure. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9067109
SMART-CASE L, Vers. Iproduct added to your list
black RAL 9005
140x62.7x30.5mm
A9067119
SMART-CASE L, Vers. II
Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment
Supply Case-top and base, assembly kit
A9067119
SMART-CASE L, Vers. IIproduct added to your list
black RAL 9005
140x62.7x30.5mm
,
A9067129
SMART-CASE L, Vers. III
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9067129
SMART-CASE L, Vers. IIIproduct added to your list
black RAL 9005
140x62.7x30.5mm
,
A9067139
SMART-CASE L, Vers. IV
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9067139
SMART-CASE L, Vers. IVproduct added to your list
black RAL 9005
140x62.7x30.5mm
,
A9067149
SMART-CASE L, Vers. V
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9067149
SMART-CASE L, Vers. Vproduct added to your list
black RAL 9005
140x62.7x30.5mm
,
A9067209
SMART-CASE L, Vers. I
Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.
Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9067209
SMART-CASE L, Vers. Iproduct added to your list
black RAL 9005
140x62.7x30.5mm
A9067219
SMART-CASE L, Vers. II
Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.
Version Without battery compartment
Supply Case-top and base, assembly kit
A9067219
SMART-CASE L, Vers. IIproduct added to your list
black RAL 9005
140x62.7x30.5mm
,
A9067329
SMART-CASE L, Vers. III
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9067329
SMART-CASE L, Vers. IIIproduct added to your list
black RAL 9005
140x62.7x30.5mm
,
A9067339
SMART-CASE L, Vers. IV
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9067339
SMART-CASE L, Vers. IVproduct added to your list
black RAL 9005
140x62.7x30.5mm
,
A9067349
SMART-CASE L, Vers. V
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9067349
SMART-CASE L, Vers. Vproduct added to your list
black RAL 9005
140x62.7x30.5mm
,
A9068109
SMART-CASE XL, Vers. I
Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9068109
SMART-CASE XL, Vers. Iproduct added to your list
black RAL 9005
168x74.4x35.4mm
A9068119
SMART-CASE XL, Vers. II
Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment
Supply Case-top and base, assembly kit
A9068119
SMART-CASE XL, Vers. IIproduct added to your list
black RAL 9005
168x74.4x35.4mm
,
A9068129

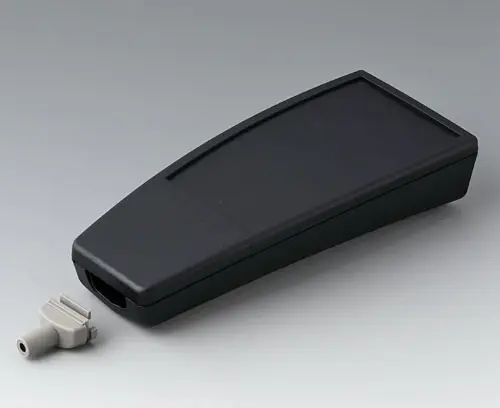

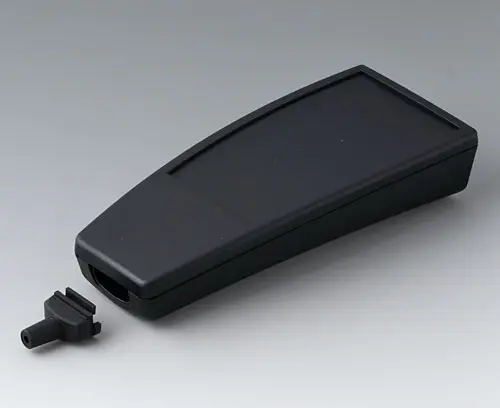

SMART-CASE XL, Vers. III
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9068129
SMART-CASE XL, Vers. IIIproduct added to your list
black RAL 9005
168x74.4x35.4mm
,
A9068139
SMART-CASE XL, Vers. IV
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9068139
SMART-CASE XL, Vers. IVproduct added to your list
black RAL 9005
168x74.4x35.4mm
,
A9068149
SMART-CASE XL, Vers. V
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9068149
SMART-CASE XL, Vers. Vproduct added to your list
black RAL 9005
168x74.4x35.4mm
,
A9068209
SMART-CASE XL, Vers. I
Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.
Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9068209
SMART-CASE XL, Vers. Iproduct added to your list
black RAL 9005
168x74.4x35.4mm
A9068219

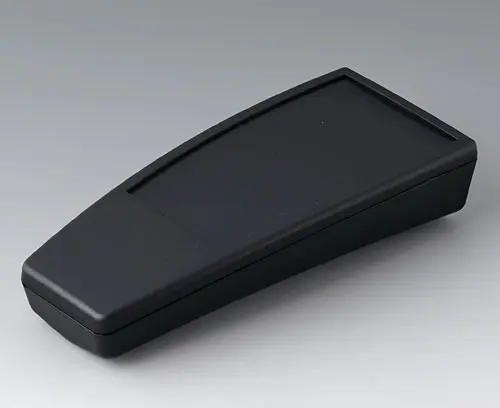

SMART-CASE XL, Vers. II
Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.
Version Without battery compartment
Supply Case-top and base, assembly kit
A9068219
SMART-CASE XL, Vers. IIproduct added to your list
black RAL 9005
168x74.4x35.4mm
,
A9068329
SMART-CASE XL, Vers. III
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9068329
SMART-CASE XL, Vers. IIIproduct added to your list
black RAL 9005
168x74.4x35.4mm
,
A9068339
SMART-CASE XL, Vers. IV
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9068339
SMART-CASE XL, Vers. IVproduct added to your list
black RAL 9005
168x74.4x35.4mm
,
A9068349
SMART-CASE XL, Vers. V
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9068349
SMART-CASE XL, Vers. Vproduct added to your list
black RAL 9005
168x74.4x35.4mm
,
B2823109
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2823109
CONNECT Sproduct added to your list
black RAL 9005
90x42x22mm
B2824109
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2824109
CONNECT Sproduct added to your list
black RAL 9005
120x42x22mm
B2833109
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2833109
CONNECT Mproduct added to your list
black RAL 9005
116x54x22mm
B2834109
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2834109
CONNECT Mproduct added to your list
black RAL 9005
156x54x22mm
Customising options for A9167029
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 248 KB
- AutoCAD DWG-File 471 KB
- AutoCAD DXF-File 1,197 KB
Weight/1 part
7 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A9167029 and don't forget to request a quotation!
