A9167037

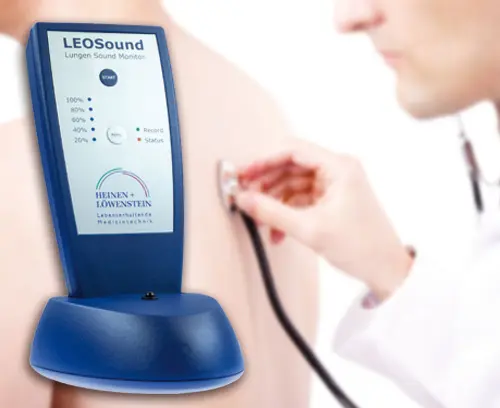

Station L

Attractive and practical station for holding your SMART CASE L with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided, for SMART-CASE L without battery compartment only). Pillars for PCB mounting, and strain relief to the rear.

Supply

Bottom and top part, rubber feet, assembly kit

2D PDF Drawing
3D PDF View
3D/2D download

Generate Your PDF Datasheet for A9167037

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list

System components to complete

A9067107 SMART-CASE L, Vers. I

A9067107

SMART-CASE L, Vers. I Large, ergonomic handheld enclosure. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version With battery compartment for two 1.5 V mignon cells (AA)or a 9 V flat battery (PP3)

Supply Case-top and base, battery compartment lid, assembly kit

A9067107

SMART-CASE L, Vers. I
product added to your list

off-white RAL 9002
140x62.7x30.5mm

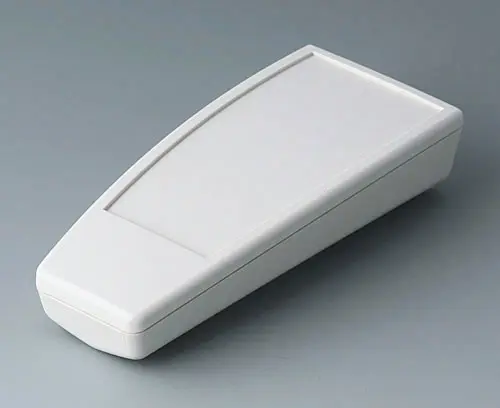

A9067117 SMART-CASE L, Vers. II

A9067117

SMART-CASE L, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment

Supply Case-top and base, assembly kit

A9067117

SMART-CASE L, Vers. II
product added to your list

off-white RAL 9002
140x62.7x30.5mm
,

Accessory

A9166004 Set of pull-relief

A9166004

Set of pull-relief For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.

Supply 2 preshaped pull-relief clamps, 2 self-tapping screws

A9166004

Set of pull-relief
product added to your list

volcano

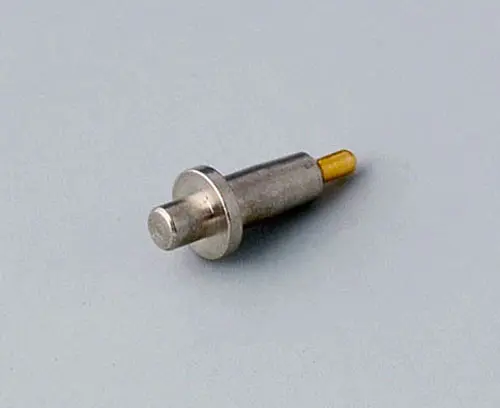

A9193032 Spring contact

A9193032

Spring contact Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 3 A. 1.5 mm stroke, 0,3 N. Extremely low contact resistance.

Supply 1 spring contact

A9193032

Spring contact
product added to your list

Customising options for A9167037

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
PCB length, base
100 mm
PCB width, base
70 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
50 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A9167037 and don't forget to request a quotation!
